Home > Product

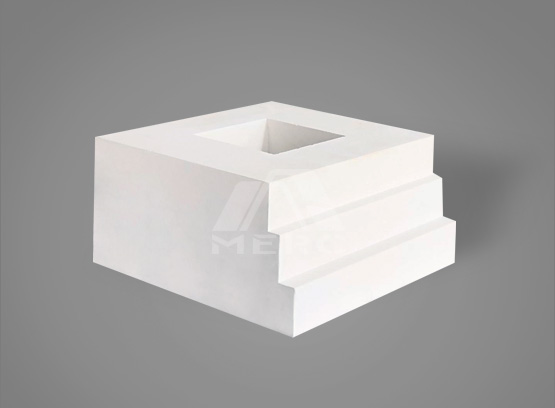

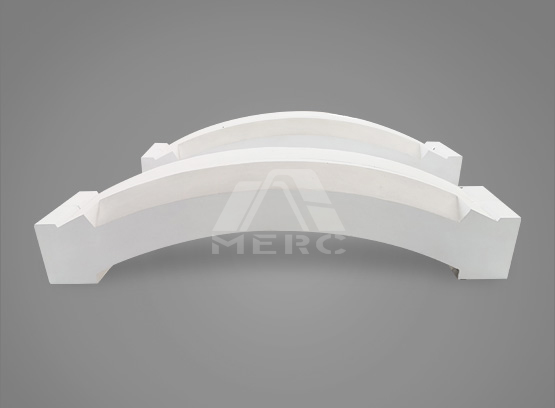

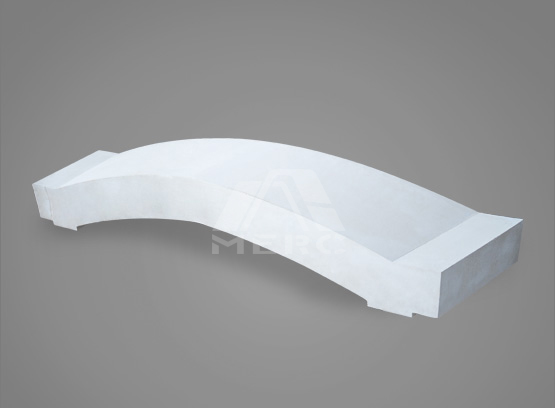

Fused Silica Modular Block

SiO2:≧ 96.6%
Al2O3:≦2%
CaO:≦1%
Bulk Density:≧1.9g/cm3
Apparent Porosity:≦18%
Request for Quotation
Online Consultant
Product Overview Specification Message
Introduction
Fused silica modular block is first developed and introduced to solve the limit of dimension and shape for traditional fused silica.
By the applying the modules,installation could be made much faster with less manpower and less downtime which brings much benefit for users.
Features
Capable of super complicated shapes and very big blocks;
No expansion and excellent thermal shock resistance;
Less joints and shorter lead time;
Less labor intensive,fast installation;
Less interruption to production,quick heat-up after repair which benefit the users.
Application
Coke Oven Hot Repair
Glass Furnace Damper,Tweel,Doghouse Arch,Canal
Specification
Properties Unit Limit CAST-99
Precast		 CAST-99G
Precast
Chemical Composition                            SiO2     % ≥ 96.6 97.0
Al2O3 % ≤ 2 -
Fe2O3  % ≤ - 0.2
CaO % ≤ 1 1
Bulk Density                     g/cm3 ≥ 1.9 1.9
Porosity                                  % ≤ 18 16
Cold Crushing Strength                     Mpa ≥ 40 45
Thermal expansion                            1000℃ % ≤ 0.2 0.2
Thermal Shock Resistance 1100℃ with water cycles ≥ 30 30


Message
Your Interest is highly recommended to share with us.
Leave your message Right now, right here, you will get reply within 30 Minutes.
Name
*
Phone
E-mail
*
Country
Information
*
Your information submitted is highly confidential and will not be disclosed to any third party.
Recommended Products
Fused Silica Brick
Fused Silica Brick
More detail
Non-Lime Bonded Silica Brick
Non-Lime Bonded Silica Brick
More detail
Fused Silica Modular Block
Fused Silica Modular Block
More detail

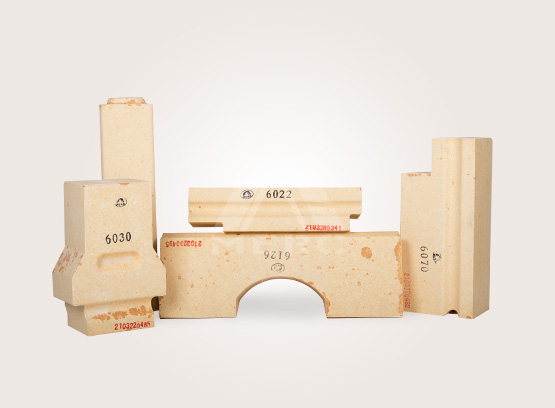

Silica Brick for Coke Oven
Silica Brick for Coke Oven
More detail

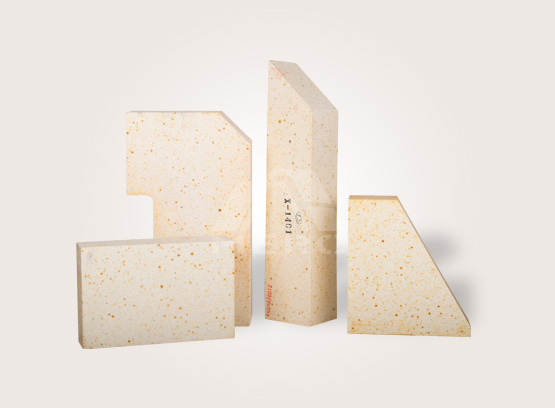

Silica Brick for Glass Kiln
Silica Brick for Glass Kiln
More detail

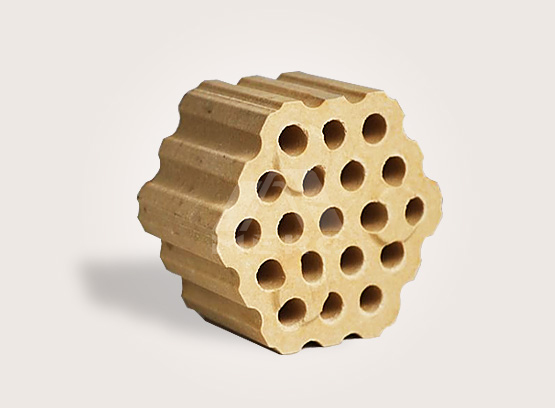

Silica Brick for Hot Blast Furnace
Silica Brick for Hot Blast Furnace
More detail

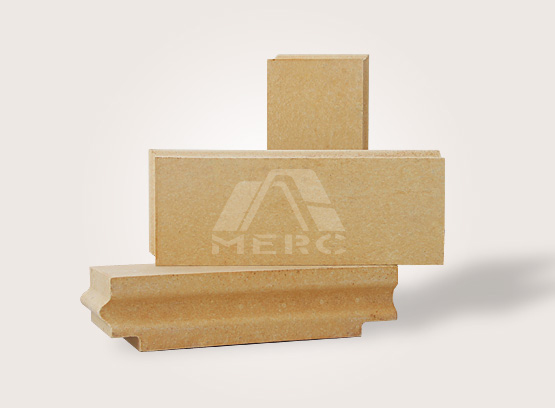

Silica Brick for Other Furnaces
